Triple Weft-layer Forming Fabrics
Triple Weft-layer
Triple Weft-layer
This modified type of 2.5-layer design delivers enhanced stability in the cross machine direction thanks to its three-ply weft structure. Furthermore, improved drainage is guaranteed because of its increased three-dimensional space.
7-shed Triple Weft-layer
7-shed
Provides as good surface property as 2.5 layer. Better stability in the cross machine running direction realized by the triple weft structure.
14-shed Triple Weft-layer
14-shed
In addition to good surface property and high stiffness of 7-shed, it has better stability in the cross machine running direction. Also provides improved abrasion resistance by the long-knuckle structure on the wear side.

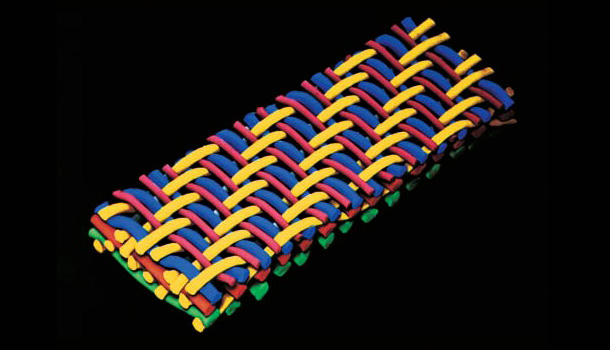

LTT Series
LTT series - Triple-layer Design
While providing as good surface property as 2.5 layer, it has better stability in the machine running direction by the triple weft structure. Also provides improved abrasion resistance by the long-knuckle structure on the wear side.
Sheet Side
Wear Side
Sheet Side Print Marks
Wear Side Print Marks
MD
CD
Applications
| Design | Paper Grade |
| LTT-4FE | Newsprint, Printing paper, Board grade, Pulp for DNT |
| LTT-7FE | Newsprint, Printing paper, Board grade, Onion-skin paper |
| LTT-9FE | Newsprint, Printing paper, Onion-skin paper |
